Cartridges

A cartridge is a package that owns one job and the resources it needs. A service is the named interface callers use for that job. Its service tag identifies the service. A Layer describes how to build services and supply their dependencies.

An Alchemy Layer can also declare the cloud resources behind a service. Layer.provide supplies the chosen implementation to the application. Replacing that Layer changes the implementation and its dependencies without changing callers.

The database cartridge makes this concrete. DatabaseVendor represents either D1 or Hyperdrive Postgres. packages/database/src/d1.ts declares the D1 schema and database.

packages/database/src/hyperdrive-postgres.ts declares the Postgres schema, Hyperdrive connection, and migration registration. Both provide the same RunLog service. The auth cartridge consumes DatabaseVendor.

packages/auth/src/auth.ts picks Better Auth16’s D1 or Hyperdrive adapter.

A cartridge must:

Removal must leave no loose resources or broken imports. Delete the package and its provision line, then run pnpm turbo run check test build.

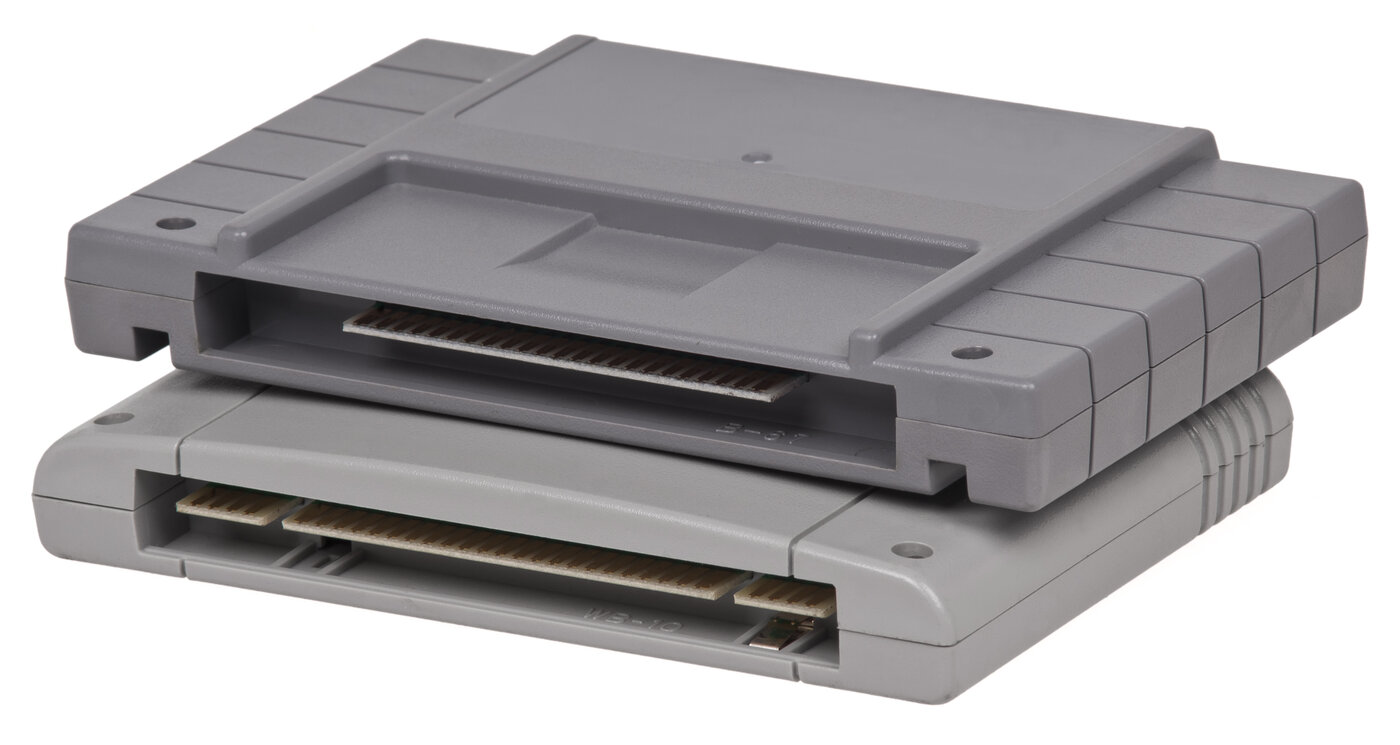

A rectangular grey Super NES cartridge above a rounded Super Famicom cartridge, with their moulded shells and connector openings visible.
A Super NES cartridge above a Super Famicom cartridge. Photo by Evan-Amos, 2011; public domain (PD-self). Source: Wikimedia Commons.

Analytics18 is a second running example: packages/events owns capture and its Basin resources. README lists the steps needed to remove it. packages/subscriber-delivery is a provider adapter behind core’s ports. One-line infrastructure removal remains unproven for that package.

Where the pattern comes from

This project calls the pattern a “cartridge”. Sam describes Layers as a way to carry infrastructure and permissions with a service, and calls the idea “SaaS as NPM.” devtools.fm, 21:15. He also describes swapping implementations by providing different Layers. Effect Office Hours 27, 34:35.

Interchangeability between provider implementations remains unproven. Sam describes test or development Layers for infrastructure and a type error when code still requires a removed binding. Happy Path 116, 15:25 Effect Office Hours 27, 07:05.

See one capability, every surface18 for the shared contract and a clean playground9 for the house rule9 behind these boundaries.

Sources

  1. rat-stack/VISION.md at main · joelhooks/rat-stack · GitHub. GitHub joelhooks/rat-stack. Cartridge criteria; used for labeling, composition, removal, and self-containment. Accessed 2026-10-01.
  2. rat-stack/packages/database/src/vendor.ts at main · joelhooks/rat-stack · GitHub. GitHub joelhooks/rat-stack. Database vendor boundary; used for the D1 and Hyperdrive example. Accessed 2026-10-01.
  3. rat-stack/packages/auth/src/auth.ts at main · joelhooks/rat-stack · GitHub. GitHub joelhooks/rat-stack. Auth composition; used for the cartridge that consumes the database vendor. Accessed 2026-10-01.
